GS-03

FIELDS OF USAGE

GS-03 Balustrade System has designed for safety and infinite vision. It can be used easily in both interior and exterior places.

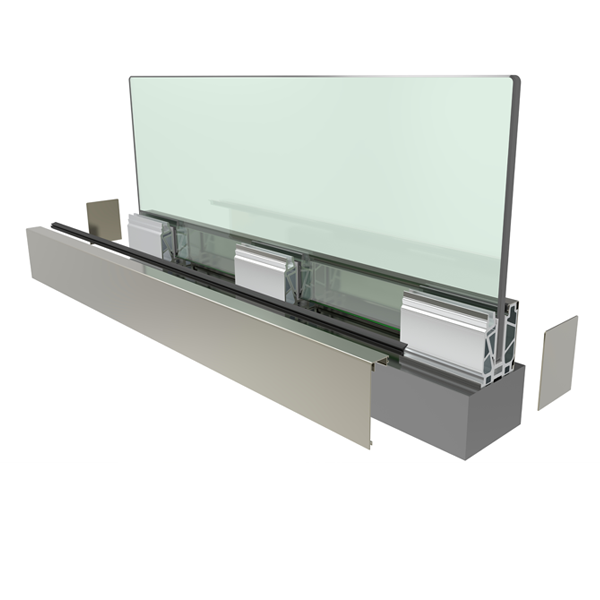

You can watch the product’s installation video here.

GLASS HEIGHT = H	THICKNESS ( mm )	L	TEST VALUES ( kN )
0 – 599 mm	( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 )	350 mm
0 – 599 mm	( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 )	400 mm
600 – 899 mm	( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 )	300 mm
600 – 899 mm	( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 )	350 mm
900 – 1099 mm	( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 )	250 mm
900 – 1099 mm	( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 )	300 mm
1100 – 1200 mm	( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 )	200 mm
1100 – 1200 mm	( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 )	250 mm	3,1 kN
GS-03 THE GLASS MEASURES FOR THIS SYSTEM ARE ON THE TABLE ABOVE. * ACCORDING TO HEIGHT OF THE BUILDING, GLASS HEIGHT AND THICKNESS MAY BE VARY.*
