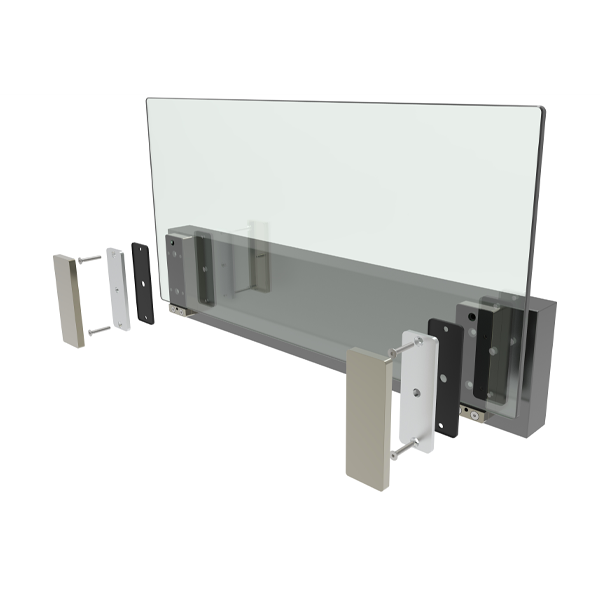

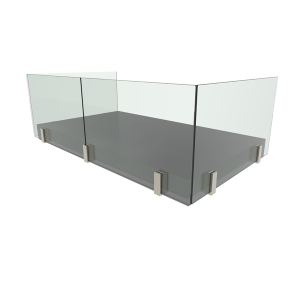

GS-10 Balustrade System has designed for safety and infinite vision. It can be used easily in both interior and exterior places.
FIELDS OF USAGE

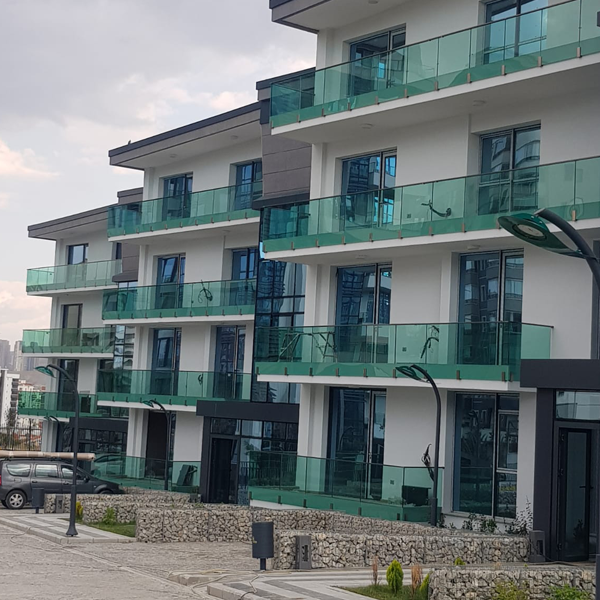

This system has designed for provide safety and vision commercial buildings , airports, hospitals, shopping malls, residential buildings etc. many constructs like staircases, balconies, galleries, and swimming pool edges, terraces etc. It can be easily used interior and exterior places.
Aksesuarları görüntülemek için aşağıda bulunan aksesuar bağlantılarına tıklayınız.
| GLASS HEIGHT = H | THICKNESS ( mm ) | L | TEST VALUES ( kN ) |
| 0 – 599 mm | ( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 ) | 1100 mm | 3 |
| ( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 ) | 1300 mm | 3 | |
| 600 – 899 mm | ( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 ) | 1050 mm | 3 |
| ( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 ) | 1250 mm | 3 | |
| 900 – 1099 mm | ( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 ) | 1000 mm | 3 |
| ( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 ) | 1200 mm | 3 | |
| 1100 – 1200 mm | ( 5 + 1,52 + 5 ) , ( 6 + 1,52 + 6 ) | 900 mm | 3 |
| ( 8 + 1,52 + 8 ) , ( 10 + 1,52 + 10 ) | 1200 mm | 3 | |

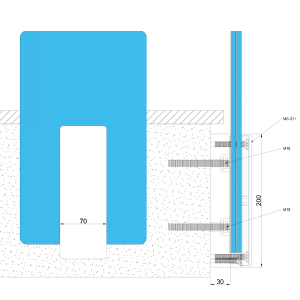

GS-10 THE GLASS MEASURES FOR THIS SYSTEMS ARE ON THE TABLE ABOVE.
* ACCORDING TO HEIGHT OF THE BUILDING, GLASS HEIGHT AND THICKNESS MAY BE VARY.*
